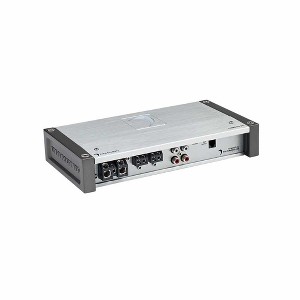

Diamond Audio HXM800.2D - Motorsport Hex 2-Ch 450W X 2 @ 2Ω / 300W X 2 @ 4Ω Rms

Introducing the MOTORSPORT Series Amplifiers from Diamond Audio – designed to deliver exceptional sound quality while enduring the toughest outdoor elements. Engineered with superior full-range Class D Digital Technology, these amplifiers generate impressive RMS power within a compact footprint. Perfect for boats, UTVs, motorcycles, or any mobile audio application, MOTORSPORT amplifiers bring the renowned Diamond Audio listening experience to outdoor settings. Their water-resistant construction and conformal-coated multi-layer circuit boards ensure reliability in marine applications and harsh environments. Enjoy noise-free operation with balanced differential inputs, and benefit from full-range digital Class D technology with DirectFET power MOSFET output stage. The 12dB per octave adjustable crossovers and phase control allow for precise system tuning, while top-mounted controls provide convenient adjustment. Specifications POWER RATING RMS Power (2Ω): 400W X 2 RMS Power (4Ω): 300W X 2 Bridged (Mono 4Ω): 800W X 1 (4Ω ONLY) POWER SUPPLY Power Supply: Full PWM Power Supply Threshold: 10.0V-17.0V (DC) Idle Current: (0.7A) DISTORTION THD 4 (1KHz @4Ω): 0.05% S/N Ratio (A weighted @1W): -77.2dBA S/N Ratio (A weighted @FP): -98.9dBA INPUT SENSITIVITY Low Input Level: 0.2mV-10.0V High Input Level: Up to 25W RMS INPUT IMPEDANCE Low Input Level: 22KΩ OUTPUT STAGE Output Impedance: 0.047Ω Damping Factor (50Hz @ 4Ω): >250 Bandwidth (-3dB): 10Hz-35KHz CROSSOVER (-12dB/Oct) Variable High-Pass: 40Hz-400Hz Variable Low-Pass: 40Hz-400Hz FUSE RATINGS ATC: 40A DIMENSIONS L x W x H: 9.74" x 5.27 x 1.75 (247.6mm x 133.9mm x 44.5mm) FEATURES Anodized Extruded Aluminum Heat Sink Provides Superior Thermal Performance Full Range Class D IR Chipset Illuminated Logo / Fully Concealed Mounting Output Clip Indicators for Precise Set-Up Fine Tuned Fully Variable Crossovers and Phase Control Top Mounted Controls for Convenient Amplifier Adjustment
