$249.99 when purchased online
Target Online store #3991
About this item
Highlights
- Tons of low frequency output in a lightweight, durable cast aluminum chassis
- Useful as a subwoofer in small to medium sized boxes
- Also great as a woofer in large 3-way enclosures, or high-power bass guitar amps
- Nominal Impedance*: 8 Ohms.
Description

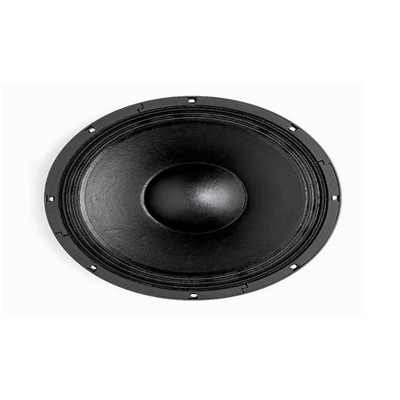

This table charts the specifications for the KAPPA PRO 18LF-8 speaker * Nominal Basket Diameter: 18-in , 457 mm. * Nominal Impedance*: 8 Ohms. * Power Rating*. * Program Power: 1600 W. * Watts: 800 W. * Resonance: 32 Hz. * Usable Frequency Range: 38 Hz - 0.7 kHz. * Sensitivity*: 98 dB. * Magnet Weight: 120 oz.. * Gap Height: 0.37-in , 9.5 mm. * Voice Coil Diameter: 3-in , 76 mm. * Thiele & Small Parameters. * Resonant Frequency (fs): 32 Hz. * DC Resistance (Re): 5.39 Ohms. * Coil Inductance (Le): 1.21m H. * Mechanical Q (Qms): 10.66. * Electromagnetic Q (Qes): 0.34. * Total Q (Qts): 0.33. * Compliance Equivalent Volume (Vas): 391.61 liters / 13.83 cu.ft.. * Peak Diaphragm Displacement Volume (Vd): 927.2 cc. * Mechanical Compliance of Suspension (Cms): 0.21 mm/N. * BL Product (BL): 19.39 T-M. * Diaphragm Mass Inc. Airload (MMs): 119 grams. * Efficiency Bandwidth Product (EBP): 94. * Maximum Linear Excursion (Xmax): 8 mm. * Surface Area of Cone (Sd): 1159 cm2. * Maximum Mechanical Limit (Xlim): 18 mm. ----------------------------------- Recommended Enclosure Volume; * Sealed: 0-0 liters / 0-0 cu.ft. . * Vented: 113.27-353.96 liters / 4-12.5 cu.ft. . * Driver Volume Displaced: 0.234 cu.ft. / 6.62 liters. * Overall Diameter: 18-in , 457.2 mm. * Baffle Hole Diameter: 16.58-in , 421.1 mm. * Front Sealing Gasket: Yes. * Rear Sealing Gasket: Yes. * Mounting Holes Diameter: 0.28-in , 7.1mm. * Mounting Holes B.C.D.: 17.25-in , 438.2mm. * Depth: 8.15-in , 207 mm. * Net Weight: 24.5 lbs, 11.11 kg. * Shipping Weight: 28.1 lbs, 12.75 kgs. * Materials of Construction. * Coil Construction: Copper voice coil. * Coil Former: Kapton former. * Magnet Composition: Ferrite magnet. * Core Details: Vented and extended core. -----------------------------------. * Basket Materials: Die-cast aluminum basket. * Cone Composition: Treated paper cone. * Cone Edge Composition: Cloth cone edge. * Dust Cap Composition: Treated paper dust cap.
Dimensions (Overall): 9 inches (H) x 19.25 inches (W) x 19.25 inches (D)
Weight: 26 pounds
Battery: No Battery Used
Warranty: 10 Day Limited Warranty. To obtain a copy of the manufacturer's or supplier's warranty for this item prior to purchasing the item, please call Target Guest Services at 1-800-591-3869
TCIN: 92981007
UPC: 876358003730
Origin: imported
The above item details were provided by the Target Plus™ Partner. Target does not represent or warrant that this information is accurate or complete. On occasion, manufacturers may modify their items and update their labels.
We recommend that you do not rely solely on the information presented. If you have a specific question about this item, you may consult the item's label, contact the manufacturer directly or call Target Guest Services at 1-800-591-3869.
If the item details above aren’t accurate or complete, we want to know about it.
Shipping details
Estimated ship dimensions: 20 inches length x 20 inches width x 10 inches height
Estimated ship weight: 27 pounds
This item cannot be shipped to the following locations: APO/FPO, American Samoa, Guam, Northern Mariana Islands, Puerto Rico, United States Minor Outlying Islands, Virgin Islands, U.S., Alaska, Hawaii
item ships from third party seller: CLICK N SAVE LLC
