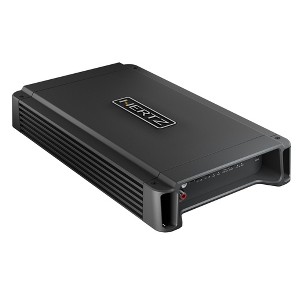

Hertz Compact Power HCP-2X High Power AB-Class Stereo Amplifier 200 WRMS X 2 at 2-Ohm

HCP 2X is a brand new stereo car audio amplifier, 800W amplifier, designed to expand or modify with maximum easiness the factory system: featuring pre-amplified (Pre-In) inputs as well as high-level (Speaker-In) inputs, for connection with any head units. All the Hertz Compact Power amplifiers are assembled with high-quality components and feature a complete and by-passable crossover system. The dissipation system is optimized with the heat being transferred to the heat sink and then dissipated through the sides of the amplifier. With HCP 2X high power systems can be realized: settable both in mono, to drive the subwoofer, and together with another amplifier, for more complex systems; it also features a Bass Boost filters (0 ÷ 12 dB) to enhance low frequencies. Features - • Compact Design Built from Extruded Aluminum Heatsink with the Top Side Ensuring Effective Transfer of Heat. • Special Balanced High-Noise Rejection Input Circuitry on the Pre-In or Speaker-In Inputs. • Speaker-In (For OEM Head Units) and RCA-In (For Aftermarket Head Units) Inputs. Power Supply - • Power supply voltage / fuse: 11 ÷ 15 VDC / 2 x 20 A • Idling current (power ON/OFF): 0. 6 A / 0.4 mA • Remote In: 7 ÷ 15 VDC - 1 mA • ART: Automatic Remote Turn-On/Off with Speaker-In • Amplifier Stage - • Distorsion - THD (100 Hz @ 4 Ω): 0.03 % • Bandwidth: 10 ÷ 65k Hz • S/N Ratio (A weighted @ 1 V): 105 dB • Damping factor (100 Hz @ 4 Ω): 300 • Pre-In sensitivity: 0.2 ÷ 5 VRMS • Speaker-In sensitivity: 0.8 ÷ 20 VRMS
