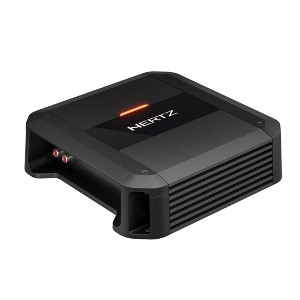

Hertz DP 1.500 D-Class Mono Bass Amplifier 500 WRMS x 1 at 2Ω

Hertz DIECI POWER DP 1.500 Mono Class-D compact car audio amplifier is an audio powerhouse designed to elevate your car audio experience to unprecedented heights. Despite its compact size, the DP 1.500 packs a punch with its maximum power output, featuring ADC (Advanced Class-D) 2Ω stable power output in a small and compact design. This innovative design allows for a potent audio performance without sacrificing space, making it an ideal choice for those seeking uncompromised sound in a limited footprint. The amplifier's aesthetics are as impressive as its performance. An elegant status LED, solid machined terminal block, and a removable top panel that safeguards controls and connections contribute to a sleek and sophisticated design that seamlessly integrates into any car interior. Universal compatibility is a key feature of the DP 1.500, offering an operating supply voltage ranging from 9 to 17.5 V and speaker-in input sensitivity from 1.6 to 40 Vrms. The integrated Universal Speaker Simulator enhances versatility, ensuring optimal performance with a wide range of audio sources. Specifications - • Channels: 1 POWER SUPPLY - • Nominal power supply voltage (fuse): 11 ÷ 15 VDC (1 x 30 A) • Operating power supply voltage: 6.5 ÷ 17.5 VDC • Idling current: 1 A • Standby current draw: 50 uA • Consumption, MIN load impedance (Max Musical Power): 21 A • Remote IN: 4 ÷ 17 VDC (1 mA) • ART - Automatic Remote Turn on/off from SPK-IN (BTL radio only) 1.5 VDC • Efficiency: 86% AMPLIFIER STAGE - • Distortion - THD @ 100 Hz, 70% Rated Power: 0.2% • Damping factor: @ 1 kHz, 1W 180 • Bandwidth @ -3 dB: 10Hz ÷ 500Hz • S/N ratio (A-weighted @ 1 V Input): 99 dBA • Minimum load impedance: @ 1 Ch: 2 Ω • Adjustable Crossovers: yes
