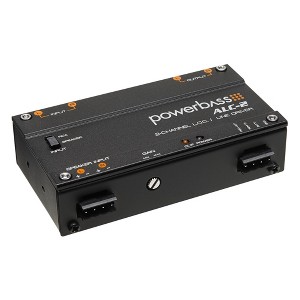

PowerBass ALC-2 - 2 Channel High to Low Level Converter

PowerBass ALC-2 Line Output Converter / Line Driver The ALC-2 is a premium 2-channel LOC (Line Output Converter) for integrating factory OEM radios with high level outputs to aftermarket amplifiers with low level inputs. Using high quality low tolerance components and SMD (Surface Mount Devices) Technology the high level factory OEM radio output signal is converted to a low level signal while increasing the output voltage up to 13Vrms to deliver them to the amplifier inputs with no gain loss. Features - • 2-Channel High to Low Level Active Converter • Front/Rear High Level Inputs • Front/Rear Variable Gain • Front/Rear RCA Low Level Output • LED Clipping Indicator • Auto Turn-On Circuitry • Variable 13Vrms Output Specifications - • Maximum Input Power (High Level): 100 watts • Maximum Input Voltage (Low Level): 9.5 volts • Maximum Output Voltage: 13 volts • Frequency Response: 10Hz-100KHz +/-3dB • Total Harmonic Distortion: <0.4% • Signal to Noise Ratio: 94dB • Low Level Input Impedance: >20,000 ohms • High Level Input Impedance: >180 ohms • Output Impedance: <100 ohms • Power Supply: PWM DC/DC • Current Draw: 150mA • Recommended Fuse: 1-amp • Chassis Measurements (W x L x H): 4.4" x 2.3" x 1.1" (111mm x 58mm x 28mm)
