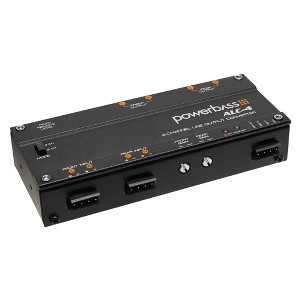

PowerBass ALC-4 - 4 Channel High to Low Level Converter

PowerBass ALC-4 Four Channel Line Output Converter The ALC-4 is a premium 4-channel LOC (Line Output Converter) for integrating factory OEM radios with high level outputs to aftermarket amplifiers with low level inputs. Using high quality low tolerance components and SMD (Surface Mount Devices) Technology the high level factory OEM radio output signal is converted to a low level signal while increasing the output voltage up to 13Vrms to deliver them to the amplifier inputs with no gain loss. A dash mount remote level control is provided to adjust the subwoofer level (rear channel only). Features - • 4-Channel High to Low Level Active Converter • 2CH/4CH Selector Switch • Front/Rear High Level Inputs • Front/Rear Variable Gain • Front/Rear RCA Low Level Output • LED Clipping Indicator • Includes Wired Variable Remote Level Control (Rear) • Auto Turn-On Circuitry • Variable 13Vrms Output Specifications - • Maximum Input Power (High Level): 100 watts • Rear Channel Level Boost: 18dB • Maximum Output Voltage: 13 volts • Frequency Response: 10Hz-100KHz +/-3dB • Total Harmonic Distortion: <0.4% • Signal to Noise Ratio: 81dB Front / 68dB Rear • High Level Input Impedance: >180 ohms • Output Impedance: <100 ohms • Power Supply: PWM DC/DC • Current Draw: 220mA • Recommended Fuse: 1-amp • Chassis Measurements (W x L x H): 5.8" x 2.3" x 1.1" (148mm x 58mm x 28mm)
