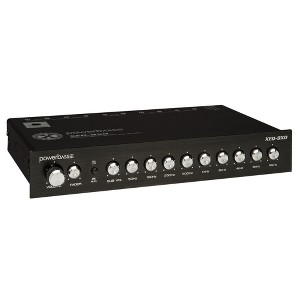

PowerBass XEQ-9XO - 1/2 Din 9 Band PreAmplifier / Equalizer

PowerBass XEQ-9XO 9-Band Equalizer The XEQ-9XO 4 Band Equalizer and Pre-Amp is the perfect solution to take your sound system from good to excellent by giving you 9 EQ controls, subwoofer volume & crossover controls, fader and multiple inputs. Most all of us have multiple musical tastes and each one of them require different listening desires. By having the ability to set different EQ settings gives us the ultimate control over the sound reproduction and multiple source inputs. Features - • 9-Band Active Equalizer • Bi-Polar Mosfet PWM Power Supply • Frequency Response: 20HZ-40KHz • Variable Subwoofer Frequency Roll-off 30Hz-120Hz • Front Panel Source Selector • Independent Subwoofer Volume Control • Front and Rear Output Fader • 2 Low Level RCA Inputs: Rear Aux and Rear CD • 3 Low Level RCA Outputs: Sub, Front and Rear • EQ Centers: 50Hz, 120Hz, 250Hz, 500Hz, 1kHz, 2kHz, 4kHz, 8kHz & 16kHz Specifications - • Pre Graphic Frequency: 50Hz, 120Hz, 250Hz, 500Hz, 1kHz, 2kHz, 4kHz, 8kHz and 16kHz • Inputs: switchable, 2-source (2 RCA rear panel) • Equalization Boost/Cut: -/+ 18dB • Subwoofer Frequency Range: 30Hz - 120Hz • Channel Separation: 85dB • Maximum Output Voltage: 10Vrms • Power Supply: 11-15V DC negative ground • Dimensions (in Inches): 1" x 7" x 4" • S/N Ratio: >101dB • Total Harmonic Distortion: 0.02% • Frequency Response: 20 Hz - 40 kHz
