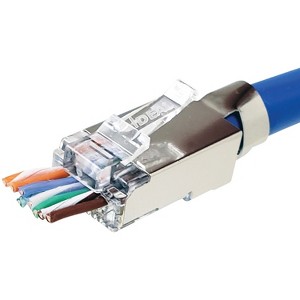

IDEAL® Shielded Feed-Thru CAT-6A/6/5-E Modular Plugs for Larger Diameter Conductors, Size: 50 Pack

Name: IDEAL® Shielded Feed-Thru CAT-6A/6/5-E Modular Plugs for Larger Diameter Conductors, Size: 50 Pack
Brand: Ideal
SKU: 91274899
Price: 99.99 USD
Availability: InStock
Rating: 2 (1 reviews)

2 out of 5 stars with 1 reviews

$99.99

In Stock

Sold & shipped by Diddly Deals

Eligible for registries and wish lists

Save 5% every day

With Target Circle™ Card

About this item

Details

Highlights

For shielded or unshielded CAT-6A, CAT-6, or CAT-5E with insulated conductor diameter of .040 in. to .048 in., maximum jacket diameter of .32 in.
Shield continuity can be made internally by folding the cable foil around the jacket and making contact with the inside of the connector walls or externally by wrapping the cable drain wire around the base of the jacket strain relief clip
Jacket strain relief is prepositioned in the up position so cable insertion is simplified
Pre-formed clip can be closed and crimped with a standard needle-nose or plier-nose device
Requires the IDEAL® FT-45™ Crimp Tool to properly terminate
50-ct jar

Description

The IDEAL 85-368 Shielded Feed-Thru CAT6A/6/5E Modular Plugs are shielded with ground wire for conductors .040 in. to .048 in. They are specifically designed to handle the challenges faced with field termination of shielded cables but will also work with unshielded cables. Utilizing a unique pin and stagger pattern, the single-piece design helps to funnel the conductors through the connector and out of the Feed-Thru end. No load bars or multipiece assemblies are required. These modular plugs are simply twisted for an easy assembly process. These plugs require the IDEAL FT-45 Crimp Tool to terminate. No adjustments or blade changes are required to the FT-45 to use these connectors..

Specifications

Dimensions (Overall): .25 inches (H) x .5 inches (W) x 1.25 inches (D)

Weight: .0 pounds

Connection Type: RJ-45 (Ethernet)

Wireless Frequency/Band: No Frequency/Band

Data Transfer Rate: 10 Gbps

Wireless Technology: No Wireless Technology

Product Name: IDEAL® Shielded Feed-Thru CAT-6A/6/5-E Modular Plugs for Larger Diameter Conductors, Size: 50 Pack

Battery: No Battery Used

Warranty: 1 Year Limited Warranty. To obtain a copy of the manufacturer's or supplier's warranty for this item prior to purchasing the item, please call Target Guest Services at 1-800-591-3869

TCIN: 91274899

UPC: 783250853694

Origin: imported

The above item details were provided by the Target Plus™ Partner. Target does not represent or warrant that this information is accurate or complete. On occasion, manufacturers may modify their items and update their labels.

We recommend that you do not rely solely on the information presented. If you have a specific question about this item, you may consult the item's label, contact the manufacturer directly or call Target Guest Services at 1-800-591-3869.
