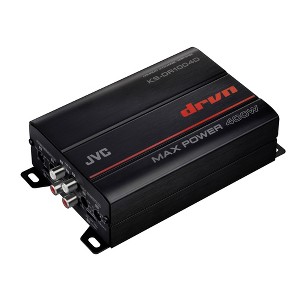

JVC KS-DR1004D 4-Channel Marine & Powersport Amplifier - 100 x 4 Watts

Receivers and amplifiers for marine and motor sports applications need to perform in harsh environments exposed to outdoor elements. JVC’s marine and motor sports receivers and amplifiers feature compact size for versatile installation even in tight spaces. Conformal coated main PCBs (printed circuit boards) offer additional protection against moisture and condensation from damaging the product. A conformal coating is a protective chemical coating to safeguard electronic circuits from harsh environments that may contain moisture or chemical contaminants. It provides a barrier to airborne contaminants from the operating environment, such as salt-spray, thus preventing corrosion. Separated circuit boards of the Pre-amp and Power-amp sections contribute to a reduction in radiation noise. Specifications: Maximum Power Output: 400W RMS Power Output (4 ohm) [ 1% THD 14.4V]: 45W x 4 (20 - 20,000Hz) RMS Power Output (2 ohm) [ 1% THD 14.4V]: 45W x 4 (1,000Hz) RMS Power Output (Bridged 4 ohm) [ 1% THD 14.4V]: 90W x 2 (1,000Hz) Class: Class-D Signal-to-Noise Ratio (reference: 1W into 4 ohms), CEA-2006 Compliant: > 82dB Load Impedance Load Impedance Allowance: 2 - 8 ohms HPF: 50Hz - 200Hz (-12dB/oct) LPF: 50Hz - 200Hz (-12dB/oct) RCA Input: Ach L/R, Bch L/R High Level Input (Speaker Level Input): Yes High Level Input Auto Power Control (Signal Sensing Turn On): Yes Input Sensitivity: 0.2 - 5V Dimensions (W x H x D): 145 x 45 x 99 mm (5-11/16" x 1-3/4" x 3-7/8") Weight: 0.7kg (1.5lbs)
