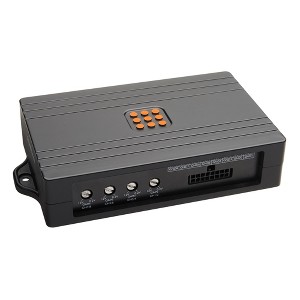

Powerbass PBX-DSP8 32 Bit 8 Channel DSP with 31 Band Eq

The PBX-DSP8 digital signal processor is engineered to deliver the ultimate in system tuning capabilities, in an easy-to-use format. Combined with a state-of-the-art 32-bit DSP processor, The PBX-DSP8 gives you the ability to do complete DSP tuning and signal summing via your smart phone or tablet using the downloadable PBX-DSP8 app. Features: Digital Signal Processor for system integration. Wireless / APP Control compatible with PBX-DSP8. Auto Turn on with DC Offset High and Low level input Low Level user adjustable Outputs 8 Channels input / 8 channels output Amplifier remote turn on with user selectable delay Processing Features: 32-Bit Digital Signal Processing 31 Band User Adjustable Equalization per channel User Adjustable Delay and Gain per channel User Adjustable Crossover Network with adjustable slopes 6 - 48db User Selectable Phase control per channel 0 / 180 degrees Adjustable input voltage per channel pairings 250mV - 9V Specifications Subwoofer Frequency Range: User Selectable Power Supply: 11-15V DC negative ground Maximum Output Voltage: 8Vrms Inputs: 8 Channel Low Level / High Level Dimensions (in Inches): 5" x 4" x 1.26" Depth: 4" Channel Separation: 98dB Selectable Subwoofer EQ: User Selectable Pre Graphic Frequency: User Selectable Equalization Boost/Cut: User Selectable Height: 1.26" Width: 5" Switchable Subwoofer EQ: User Selectable Subwoofer EQ Frequency: User Selectable Variable Subwoofer EQ: User Selectable Low-Pass Crossover Freq: User Selectable High-Pass Crossover Freq: User Selectable Crossover Slope: User Selectable Input Sensitivity: User Selectable S/N Ratio: 100dB Total Harmonic Distortion: <1.0% Frequency Response: 20 Hz - 20 kHz
