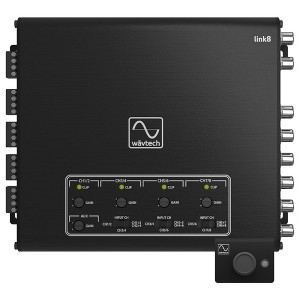

Wavtech link8 - 8-Channel Line Output Converter w/ AUX Input, summing and remote

Today’s factory installed audio systems are becoming more complex. With many of the vehicle controls and operations integrated into the source unit, replacing it is no longer an option. Some vehicles have amplifiers dedicated to each individual speaker. When you aren’t satisfied with the OEM system sound, these factors make it increasingly difficult when it comes time to upgrade. That is why you need a link8. The link8 is about as versatile as an analog integration product can be. The link8 has 8-channels of high level inputs that can be configured in a number of ways. With just 2-channles of input, signal can be achieved at all 8-channels of output. With 4-channels of input, you can have front, rear and subwoofer output.Even when summing a 4-way system to full-range, subwoofer level control can still be retained. These are just a few of the configurations available via the link8’s convenient external controls. link8 Features 8-Channel Summing Processor (8-in/8-Out) Multi-Function Remote Level/Source Control Master Volume Control AUX Volume Control Independent CH7/8 Level Source/Function Select AUX 3.5mm Input 2/4/6/8ch Input Select (Direct, Copy or Sum) 2/3/4-Way Summing w/Retained Sub Level Control Never Zero Ch7/8 Output with Front & Rear Input Differential Balanced Inputs Low Impedance Outputs Variable Gain Adjustments w/Clip LEDs Auto Turn-On via DC-Offset or Audio Signal Detect Generated +12V Remote Output OEM Load Detect Compatible Locking Detachable Power/Speaker Terminals Professional Grade Panel Mount RCA’s Compact Aluminum Chassis w/Detachable Mounting Tabs link8 Specifications Output Voltage (Max): >10Vrms Output Impedance: <50Ω Input Sensitivity SPK: 2-20Vrms, 4-40Vrms AUX: 0.5-5Vrms Max Input Voltage (SPK): 40Vrms Frequency Response: <10 Hz to 100kHz THD+N (SPK/AUX): <0.05% /<0.05% S/N (SPK/AUX): >114dBA />113dBA Turn-On Trigger: +12V, DC-offset & Audio Detect Generated +12V Output: >500mA Chassis Dimensions: 1.1”x5.9”x6.4” (29x150x163mm)
