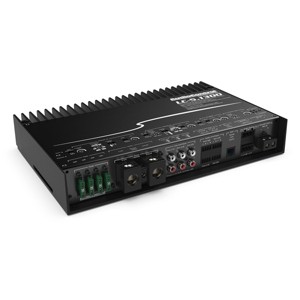

AudioControl LC-5.1300 High-Power Multi-Channel Amplifer with Accubass

High-Power Multi-Channel Amplifier with AccubassThe LC-5.1300 brings five channels of sonic purity and unprecedented levels of power to a complete range of multi-channel and subwoofer amplifiers from AudioControl. Featuring eight active speaker level inputs six line-level inputs the LC-5.1300 is packed with intuitive setup controls for high-pass band-pass and low-pass filters automatic and selectable signal summing and AccuBASS. Integrate seamlessly with your OEM or aftermarket sound system with this single-amp solution which will transform your audio with impressive power levels delivered to your speakers and subs. Add the optional ACR-1 remote for level control.

Features:
•Configurable as 5 or 3 channel amplifier
•4 x 200 watts + 1 x 500 watts @ 2 ohms
•4 x 100 watts + 1 x 300 watts @ 4 ohms
•400 watts @ 4 ohms bridged
•AccuBASS Processing
•MILC Maximum Input Level Control (Patent Pending)
•GTO Signal Sense
•3-way Independent Linkwitz-Riley Alignment crossovers
•Summable active speaker-level inputs (8 channels) for OEM integration
•6 preamp inputs
•PFM Subsonic Filter
•Optional ACR-1 assignable remote control
•Solid One-Piece Aluminum Chassis

What's in the Box
•LC-5.1300
•Speaker connectors
•Fuse
•Manual
•5 Year Warranty

Specifications
•Inputs
•Preamp Inputs: 6 balanced
•Preamp Input Voltage Range: 500 mV 6 Vrms
•Speaker Level Inputs: 8
•Speaker Level Input Voltage Range: 3 V 40 Vrms


• Outputs
•Rated Continuous (RMS) Power at 14.4V:
•4 100 W x 4 + 300 W x 1
•2 200 W x 4 + 500 W x 1
•Bridged 4 400 W




• Performance
•Frequency Response: 20 Hz 22 kHz
•Signal to Noise: 102 dBa Ref 200 W @ 2 Ohm
•THD+N: 0.1%
•Minimum Power / Ground Wire Gauge: 3 AWG wire
•Fuse Rating: 4 x 30 A
•Crossover: 3-way Linkwitz-Riley Adjustable From 30 Hz 5000 Hz


•Weight Dimensions
•Dimensions (W x H x D): 12.0" x 2.1" x 8.0"
•Weight: 7.2lbs. (3.3kg)
