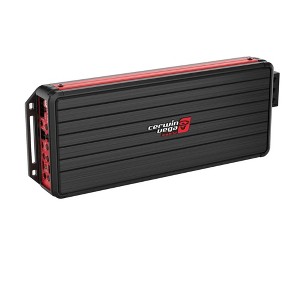

Cerwin-Vega VCU85 - Vega 5-Channel Amplifier / 110Wx4+320Wx1@2-Ohm, 85Wx4+200Wx1@4-Ohm Rms, Vega Compact Universal
$479.99 when purchased online
Target Online store #3991
About this item
Highlights
- Experience exceptional sound clarity with maximum energy efficiency.
- Engineered for stability and precision, ensuring consistent performance under any condition.
- Protected against moisture and environmental wear for long-lasting reliability.
- Built to withstand the rigors of the road, wherever your journey takes you.
- Simplifies integration with any audio system.
Description
Specifications
POWER RATING
RMS Power (2Ω): 150W x 4/350W x 1
RMS Power (4Ω): 80W x 4/200W x 1
Bridged (Mono 4Ω): 300W X 2/200W x 1
POWER SUPPLY
Power Supply: Full PWM
Power Supply Threshold: 10.0V-17.0V (DC)
Idle Current: (0.7A)
DISTORTION
THD 4 (1KHz @4Ω): 0.05%
S/N Ratio (A weighted @1W): -85 dBA
S/N Ratio (A weighted @FP): -101.1 dBA
INPUT SENSITIVITY
Low Input Level: 200mV-10.0V
High Input Level: 200mV-10.0V
INPUT IMPEDANCE
Low Input Level: 20 KΩ
High Input Level: 20 KΩ
OUTPUT STAGE
Output Impedance: 0.018Ω
Damping Factor (50Hz @ 4Ω): >250
Bandwidth (-3dB): 10Hz-35KHz
CROSSOVER (-12/-24 dB/Oct)
Variable High-Pass: Flat or Fixed 70Hz
Variable Low-Pass: 40Hz-400Hz
FUSE RATINGS
ATC: 60A
DIMENSIONS
L x W x H: 10.45”x 4.02”x 1.4” (265.6mm x 102mm x 36mm)
FEATURES
Full Range Class D IR Chipset
DirectFET Power Mosfet Output Stage
SMD Technology on 4-Layer PCB Board
Water Resistant Conformal PCB Board Coating
LED Power/Protect Light
Speaker-level (high-level) inputs
Signal sensing remote turn-on
3-way protection circuitry (thermal, overload, and speaker short protection)
Conformal-coated circuit boards
Sleek and compact design
Water resistant
Input sensitivity:
Low level: 200mV - 10.0 volts
High level: 200mV - 10.0 volts
Frequency Response: 10 - 33000 Hz
Total Harmonic Distortion (THD): 0.5%
Signal to Noise Ratio: -101.1 dB
Variable high-pass filter: 50 - 250 Hz
Variable low-pass filter: 50 - 250 Hz
Fuse Rating: 60A
4 AWG gauge amplifier wiring kit is recommended for installation
Dimensions (Overall): 18.0 inches (H) x 8.0 inches (W) x 14.0 inches (D)
Weight: 10.0 pounds
